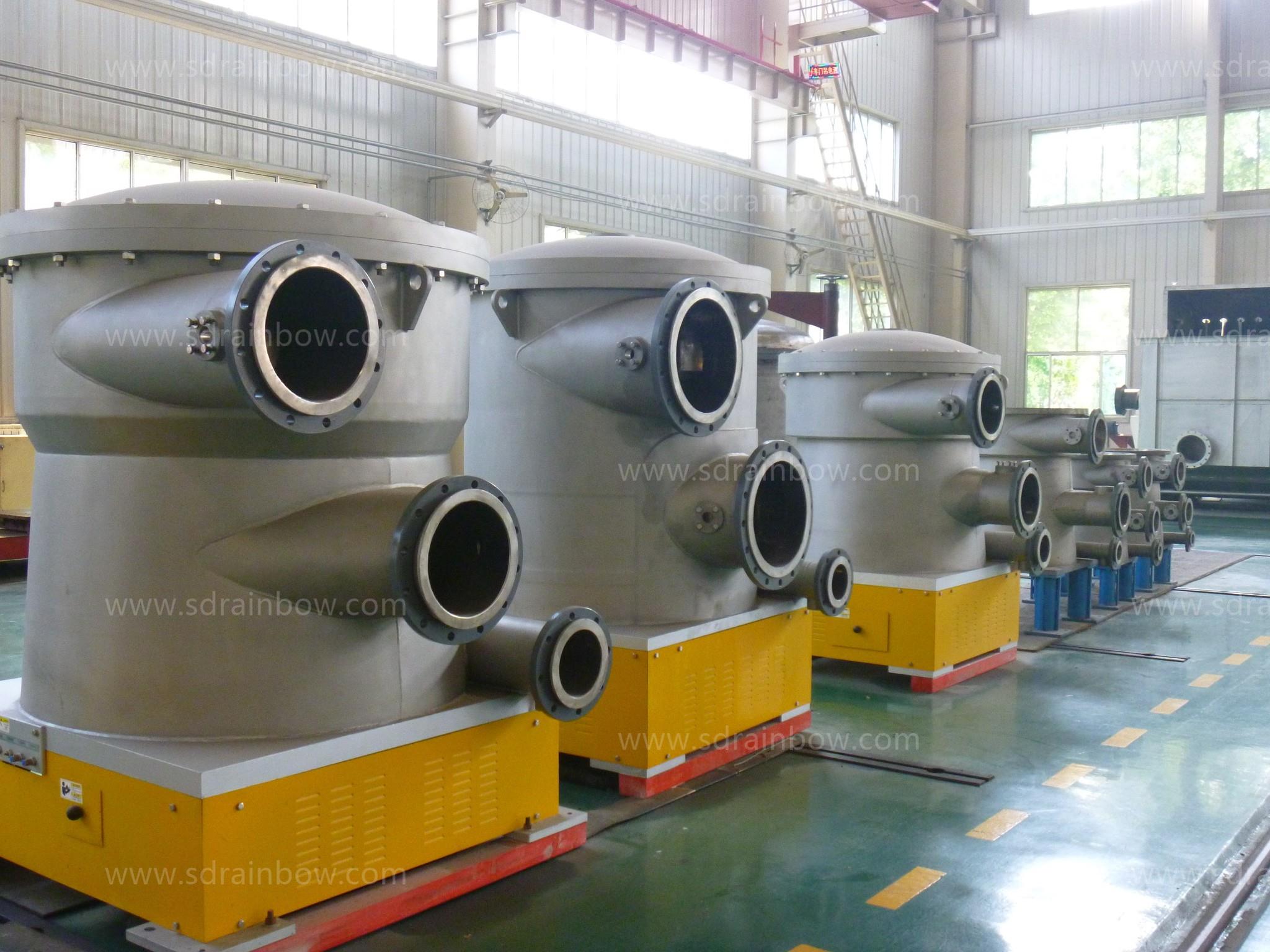

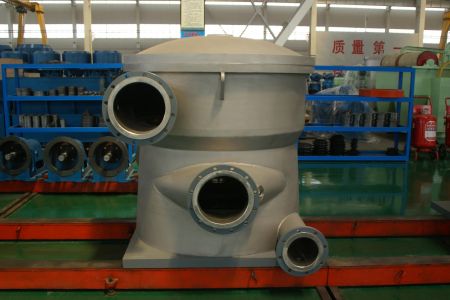

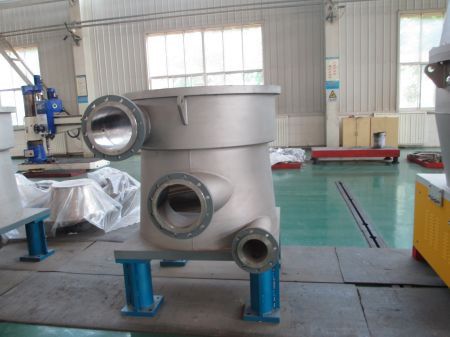

The fractionation screen accroading to the different fiber length and pliability, divide the pulp into different grade as long fiber/short fiber or long fiber/long and middle fiber/short fiber, which used for different processing purpose. This equipment is furnished with multiple-rotor, low pulse rotor. With low power consumption and fine screening effect.
The fractionation screen accroading to the different fiber length and pliability, divide the pulp into different grade as long fiber/short fiber or long fiber/long and middle fiber/short fiber, which used for different processing purpose. This equipment is furnished with multiple-rotor, low pulse rotor. With low power consumption and fine screening effect.
|
Screen area (㎡) |
0.42 |
0.8 |
1.25 |
1.8 |
3 |
3.8 |
|
Screen basket specification (mm) |
400*330 |
495*500 |
792*500 |
1000*600 |
1000*1000 |
1200*1000 |
|
Slot width (mm) |
0.12-0.20 |
~ |
~ |
~ |
~ |
~ |
|
Max capacity (BDt/24h) |
138 |
250 |
388 |
553 |
717 |
855 |
|
Inlet consistency (%) |
2-3 |
~ |
~ |
~ |
~ |
~ |
|
Power (KW) |
37-45 |
45-75 |
55-90 |
75-132 |
110-160 |
132-200 |
