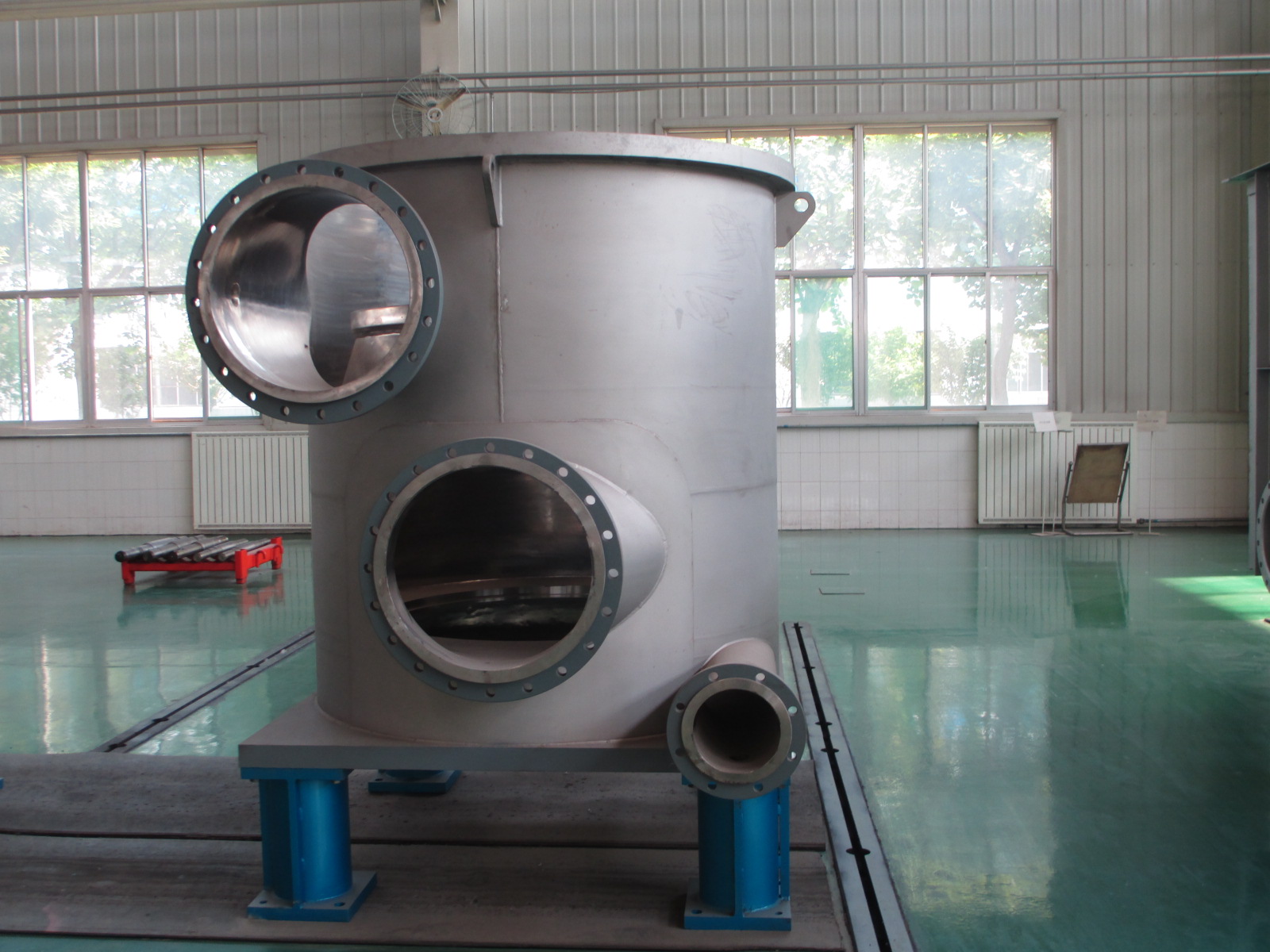

Fine screen

Fine screen

It is used for further screening for the pulp, it will removing the small impurity, big fiber bundle and sticky substance in the waste paper pulp. This equipment is furnished with multi-rotor foil, low pulse rotor. With low power consumption and fine screening effect.



0.00
0.00

Product detail

It is used for further screening for the pulp, it will removing the small impurity, big fiber bundle and sticky substance in the waste paper pulp. This equipment is furnished with multi-rotor foil, low pulse rotor. With low power consumption and fine screening effect.








Screen area (㎡)
 0.42
 0.8
 1.35
 2.0
 3.0
 3.8
 4.5
 6.1
 7.0
Screen basket specification (mm)
 400*300
 495*500
 660*650
 792*800
 1000*1000
 1200*1000
 1200*1200
 1500*1300
 1500*1500
Slot width (mm)
 0.12-0.25
 ~
 ~
 ~
 ~
 ~
 ~
 ~
 ~
Max capacity (BDt/24h)
 41
 81
 136
 202
 303
 382
 455
 607
 708
Inlet consistency (%)
 ≤1.5
 ~
 ~
 ~
 ~
 ~
 ~
 ~
 ~
Power (KW)
 11-22
 15-30
 22-30
 30-37
 37-55
 45-55
 45-75
 75-90
 75-110
